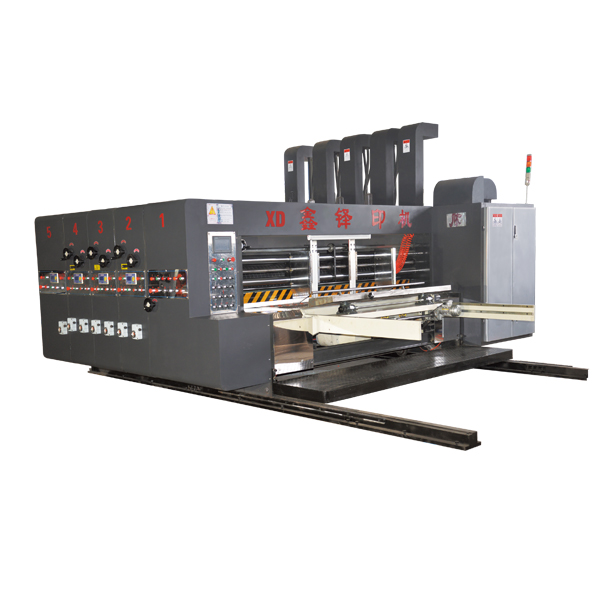

XD- 高速水墨印刷开槽模切机（伺服驱动、前缘送纸）

XD-High-speed printing slotting die cutting machine(servo drive,lead edge feeder)

整机性能：（Machine performance)

该产品能一次性完成纸板的多色印刷、分切、压线、修边、开槽、切角、模切、打孔等多道工序、采用前缘吸附式送纸，

风量可调，主机变频控制。PLC 电脑相位电动调整，各连接部气动锁紧，电动分离，齿轮 40cr 材质高频淬火，精磨齿轮，

齿轮润滑采用喷淋式循环润滑齿轮与轴免键结构连接，该机具有套色准确，印刷图案精美，使用和维修方便，自动化程度高、

高效率生产隔张送纸等特点。

This Product can accomplish multicolor printing, cutting, scoring, trimming, slotting, corner cutting, die cuttting, and punching etc. all

in one time. The adsorption type feeding at the paper leading edge is adopted with the air follow rate adjustable. Variable frequency

control(VFC） is used by the main engine. the electrical phase adjustment is achieved by the PLC computer, And various connecting

parts are pneumatically locked and electrically detached. The material of the gear is high-frequency hardened 40cr, processed by ﬁne

grinding. Spray-type circulating lubrication is used for the gears. Key-free connection struture is adopted between the gear and the shaft,

This machine set features in accurate topping, luxurious printing pattern, convenient operation and repairing, high-degree automation, high

production efﬁciency, and paper feeding at speciﬁed internals etc.

参数名称 WYAZS NAME	单位 UNIT	参数WYAZS
参数名称 WYAZS NAME	单位 UNIT	900×1900（φ300）	1200×1800/2200（φ405）		1400×2200/2600（φ480）
机器内侧宽度 Inboard width size	mm	2200	2200	2600	2600	3000
最大过纸面积 Max.paper size	mm	950×2000	1270×2000	1270×2400	1470×2400	1470×2800
最大印刷面积 Max.printing size	mm	900×1900	1200×1800	1200×2200	1400×2200	1400×2600
隔张送纸 Skip feeding size	mm	1150×1900	1450×1800	1450×2200	1650×2200	1650×2600
最小加工尺寸 Min finish size	mm	300×640	320×640	320×640	380×720	380×720
印刷版厚度 Thickness of printing plate	mm	6	7.2	7.2	7.2	7.2
整机墙板厚度 Complete machine baffle thickness	mm	50	50	50	50	50
最高速度 Max.speed	Pieces/min	160	160	160	140	140
经济速度 Economic speed	Pieces/min	140	140	140	120	120
最大槽深 Max.slotting depth	mm	200	300	300	350	350
最小开槽间隙 Min.slotting interval	mm	Clock wise： 160×160×160×160 260×60×260×60	Clock wise： 160×160×160×160 260×60×260×60		Clock wise： 180×180×180×180 280×80×280×80
