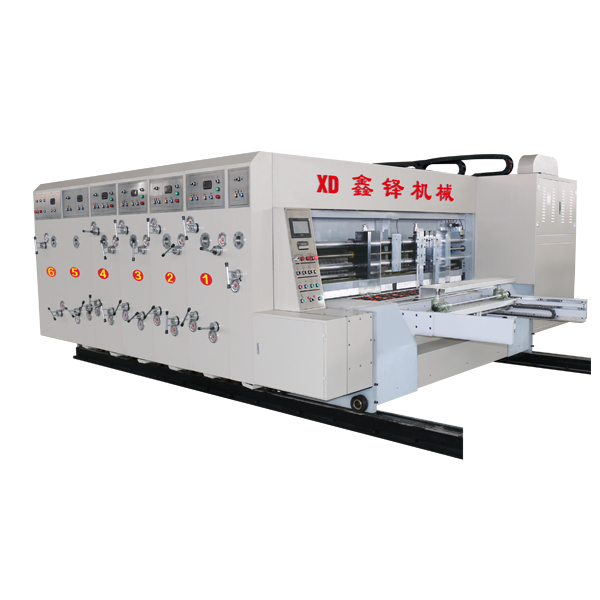

XD-全自动高速水性印刷开槽模切机(伺服驱动、前缘送纸)
- 产品品牌
- 产品型号
- 产品描述
...
功能与特点：
◆整机电器均采用国际知名品牌，质量稳定可靠。
◆整机墙板及重要部件，均采用时效处理，回火消除金属内应力；均采用高精度加工中心制作，数控磨床研磨加工。
◆整机轴、辊均采用优质钢，回火，调质处理；研磨加工，高精度电脑动平衡校正，表面镀硬铬。
◆整机传动齿轮全部采用20CrMnTi合金钢，渗碳淬火处理，经磨齿加工，套色精度高。
◆ 整机润滑系统采用喷淋式自动润滑，直观显示装置，配备双油路油位平衡系统。
◆整机工作间隙调整，免扳手自锁式蜗轮蜗杆装置，快速、方便。
◆可根据需要选择真空吸附，后踢式送纸或前缘送纸。
◆设有缺墨报警装置，实时监测供墨系统工作状态。
◆一键式自动预对版功能，电脑根据纸板宽度，把各色印刷版调整至纸板中心位置，减少调机时对纸板的浪费。

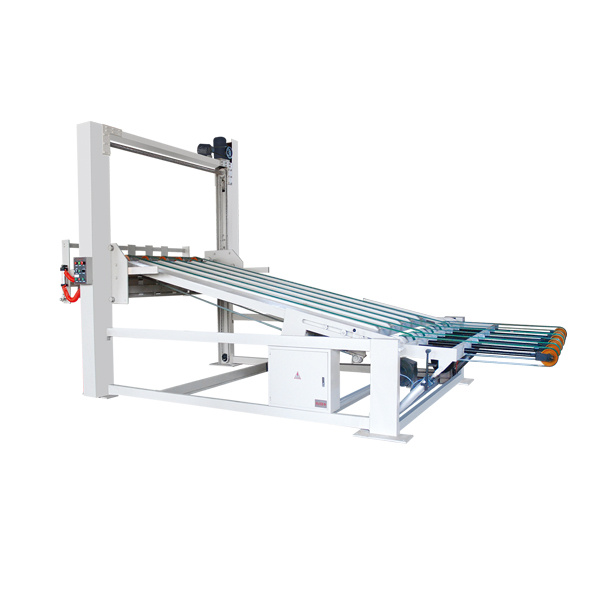

选装：陶瓷网纹辊；刮刀定墨系统；堆码机。
Function and Characteristics:
◆Whole machine electric parts was choice the international famous brand , good quality and steady.
◆Complete machine baffle and important parts was used the temper for decrease the metal internal force, and that parts was made by high precision process center and grinded by digit-controlled grinder.
◆All the transmission axle and roller are made by the high-quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface.
◆All the transmission gear was used the 20CrMnTi alloy steel, which is grinded after heat-treatment, and it was made by rubbing , it still maintains the high topping precision.
◆ The whole machine undergoes the spray lubrication , intuitionist show setting ,setting the double oil pipe balance system
◆ Whole machine working interval adjustment, free-spanner self-lock worm wheel and worm device , fast and convenient.
◆ Option the vacuum adsorption, kick feeding or lead edge feeding to the customer request.
◆Setting the ink alarm device ,real-time monitoring of the work status of the ink supply system.
◆One-button antomatic pre-stick printing plate, computer can adjustment every printing unit printing plate to center
|
参数名称 WYAZS NAME |
单位 UNIT |
参数WYAZS |
||||
| 900×1900（φ300） |
1200×1800/2200（φ405） |
1400×2200/2600（φ480） |
||||
|
机器内侧宽度 Inboard width size |
mm |
2200 |
2200 |
2600 |
2600 |
3000 |
|
最大过纸面积 Max.paper size |
mm |
950×2000 |
1270×2000 |
1270×2400 |
1470×2400 |
1470×2800 |
|
最大印刷面积 Max.printing size |
mm |
900×1900 |
1200×1800 |
1200×2200 |
1400×2200 |
1400×2600 |
|
隔张送纸 Skip feeding size |
mm |
1150×1900 |
1450×1800 |
1450×2200 |
1650×2200 |
1650×2600 |
|
最小加工尺寸 Min finish size |
mm |
300×640 |
320×640 |
320×640 |
380×720 |
380×720 |
|
印刷版厚度 Thickness of printing plate |
mm |
6 |
7.2 |
7.2 |
7.2 |
7.2 |
|
整机墙板厚度 Complete machine baffle thickness |
mm |
50 |
50 |
50 |
50 |
50 |
|
最高速度 Max.speed |
Pieces/min |
200 |
200 |
200 |
180 |
180 |
|
经济速度 Economic speed |
Pieces/min |
190 |
190 |
190 |
160 |
160 |
|
最大槽深 Max.slotting depth |
mm |
200 |
300 |
300 |
350 |
350 |
|
最小开槽间隙 Min.slotting interval |
mm |
Clock wise： 160×160×160×160 260×60×260×60 |
Clock wise： 160×160×160×160 260×60×260×60 |
Clock wise： 180×180×180×180 280×80×280×80 |
||
