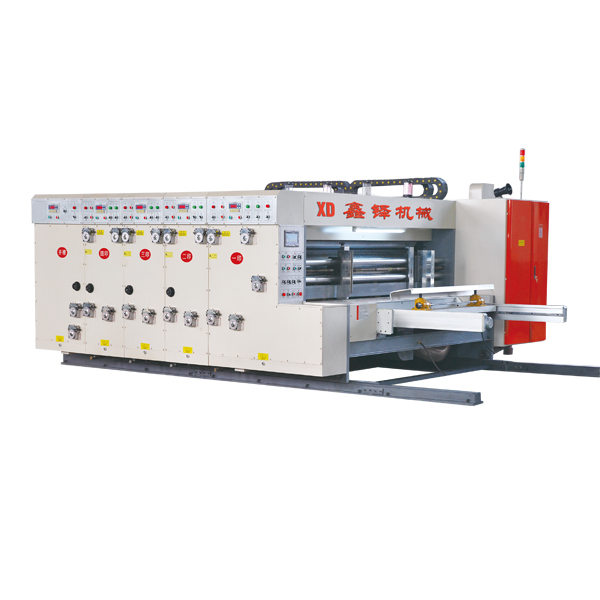

XD-自动水墨印刷轮转开槽机
XD-Automatic ink printing rotary slotting machine
功能与特点：
◆ 整机主要电器均采用知名品牌电器(可选配)。
◆ 采用直齿传动，齿轮经高频淬火，磨齿而成。
◆ 所有辊轴镀铬，增强硬度。
◆ 齿轮采用喷淋式循环润滑。
◆ 自动归零，自动对版。
◆ 模块设计，多色印刷机组任意组合。
◆ 送纸部的侧挡板、开槽各部均为电动调整。
◆ 采用PLC、触摸屏多功能控制，采用变频控制器，精确可靠。
Function and characteristics:
◆ The main machine adopts famous brand of electrical appliances (optional).
◆ Adopting vertical gear driving, the gears are made by high frequency quenching and polishing.
◆ All the axles are chrome-plated in order to strengthen the hardness.
◆ The gears use a shower type circular lubricating.
◆ Back to zero and register automatically.
◆ Use mould units designing. Multi-color printing units can be combined and linked any way.
◆ Side fence feed portion, slotting ministries are electric adjustment.
◆ Adopting touching screen control and using frequency converter precisely.
主要技术参数 Main Technical parameter
|
参数名称 WYAZS NAME
|
单位
UNIT
|
参数WYAZS
|
|
900×1900（φ300）
|
1200×1800/2200（φ405）
|
1400×2200/2600（φ480）
|
|
机器内侧宽度 Inboard width
size
|
mm
|
2200
|
2200
|
2600
|
2600
|
3000
|
|
最大过纸面积 Max.paper
size
|
mm
|
950×2000
|
1270×2000
|
1270×2400
|
1470×2400
|
1470×2800
|
|
最大印刷面积 Max.printing
size
|
mm
|
900×1900
|
1200×1800
|
1200×2200
|
1400×2200
|
1400×2600
|
|
隔张送纸 Skip feeding
size
|
mm
|
1150×1900
|
1450×1800
|
1450×2200
|
1650×2200
|
1650×2600
|
|
最小加工尺寸 Min finish
size
|
mm
|
300×640
|
320×640
|
320×640
|
380×720
|
380×720
|
|
印刷版厚度 Thickness of
printing plate
|
mm
|
6
|
7.2
|
7.2
|
7.2
|
7.2
|
|
整机墙板厚度 Complete machine baffle thickness
|
mm
|
50
|
50
|
50
|
50
|
50
|
|
最高速度 Max.speed
|
Pieces/min
|
120
|
120
|
120
|
100
|
100
|
|
经济速度 Economic speed
|
Pieces/min
|
100
|
100
|
100
|
80
|
80
|
|
最大槽深 Max.slotting
depth
|
mm
|
200
|
300
|
300
|
350
|
350
|
|
最小开槽间隙
Min.slotting interval
|
mm
|
Clock wise：
160×160×160×160
260×60×260×60
|
Clock wise：
160×160×160×160
260×60×260×60
|
Clock wise：
180×180×180×180
280×80×280×80
|
|
|
