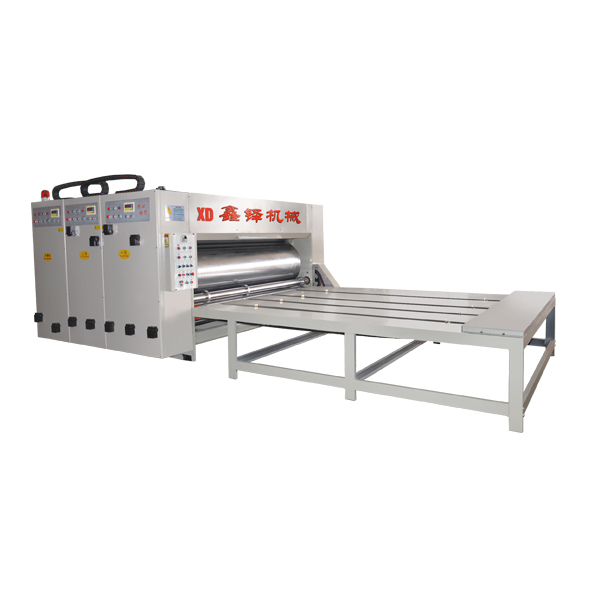

XD系列瓦楞纸板双色印刷机
- 产品品牌
- 产品型号
- 产品描述
...
用途与特点：
◆ 气动隔膜泵供墨；
◆ 传动齿轮采用循环润滑供油系统减低噪音，延长齿轮工作寿命，同时提高套色准确度。
◆ 设有自动刹车机构，机组分离后，刹车机构锁紧周向位移，保持印刷机位。
◆ 本机有单色、双色、三色、四色可供用户选择。
◆ 45#钢高频精磨齿轮，印刷更精确，效果更清晰。
◆ 配变频主动电机，起步稳，低噪音，节电可达25%。
Features:
◆ Device ink from pneumatic Diaphragm.
◆ Gear transmission uses circulating lubrication oil supply system to minimize noise and extend service life of gear and improve the precision of chromatic printing.
◆ The machine has single-color,double-color,three-colorand four-color available for option.
◆ Main gear driving adopts 45# good steel to make.And gear to quench to deal.
◆ The well-known factory in Guangdong in adoption in piece in Machine in this machine house produces.
◆ Frequency adjustment of motor starting stability,low noise,energy saving 25%.
技术参数 (Technological parameter)：
|
机械型号 Model |
轮切直径 Diameter of cut roller(mm) |
过纸面积 2 Paper passing area(mm ) |
印刷面积 2 Printing area(mm ) |
工作速度 Speed(Pieces/min) |
|
XD2500 |
φ300 |
900×2400 |
1200×2200 |
0-80 |
|
XD2500 |
φ400 |
1200×2400 |
1450×2500 |
0-80 |
|
XD2800 |
φ480 |
1450×2700 |
1500×2500 |
0-80 |
|
XD2800 |
φ530 |
1600×2700 |
1600×2500 |
0-80 |
|
XD2800 |
φ600 |
1800×2700 |
1600×2500 |
0-60 |
|
XD2800 |
φ700 |
2100×2700 |
1600×2500 |
0-60 |
|
XD2800 |
φ800 |
2500×2700 |
1600×2500 |
0-60 |
